Alu-clad Sash Windows
A new development for The Knight Collection is our aluminium-clad timber sash window, a perfect solution for those looking for an affordable sash window that is both authentic looking and low maintenance. The timber element of the window can be manufactured from various materials all of which can be painted or stained to give various internal finishes. Externally the window is capped with powder coated aluminium which can be in any RAL colour of your choice.
Authentic Construction
Alu-Clad Sash Windows
Our alu-clad sash windows are a spring loaded design which gives them the look and feel of a traditional sliding sash windows however gives us more space for the two sashes enabling us to install larger glazing than previously possible as well as the extra aluminium capping. This design overcomes many of the disappointments often seen with aluminium clad sliding sash windows and offers a more energy efficiency window than is usually available in a sliding sash design.
All Knight Collection windows as standard and are equipped with a patented locking system which offers enhanced security protection for your home.

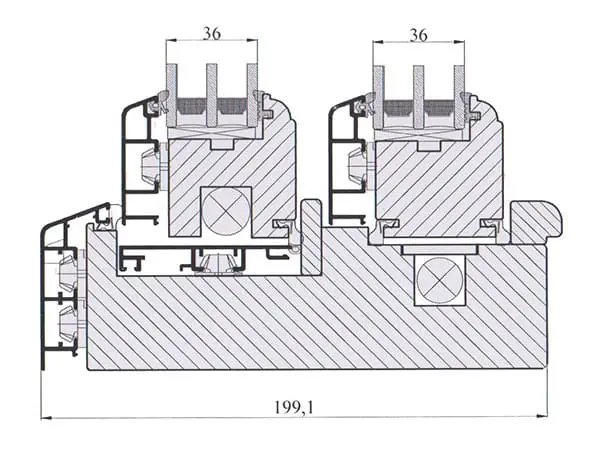

Our Alu-clad sash windows are manufactured with a spring balanced mechanism giving the look and feel of traditional box weighted sash windows however saving on space. This design allows us for more space for the two sliding sash windows which in turn enables us to support thicker glazing up to 36mm. This means that we can now support triple glazing in our aluminium clad sash windows enhancing the overall U value of the windows. We also have a range of other possible glazing options such as standard argon filled double glazing and ultra this Krypton filled double glazing units to give the look of single glazing with the energy efficiency of double glazing.
Manufactured with a timber core our sash windows have the majority of the features found on original sash windows from yesteryear including a thin top and mid rail, deep bottom rail, mechanical joints, authentic putty and glass lines as well as various astral and Georgian bars available.
Featured Projects
Configurations
Thanks to the bespoke nature of timber windows there are literally hundreds of configurable options when designing a timber sash window. If you can't find exactly what you are looking for in our standard range, we can more than likely make it for you.
Window Configurations
The knight collection sash windows are available in a wide range of standard and custom styles. Below are some examples of the common styles we often supply, all of our windows are custom made to you exact specification therefore if you cant see the window style you are after below we can most likely still have it manufactured for you. All of the designs below are individual half split sash windows however we can also group windows to create coupled styles and move the position of the centre bar to create 1/3rd and 2/5th split sash windows.
*More configurations available on request.
None Bar
Centre Bar
Three Light
Margin
Georgian Variant
Half Georgian
Margin Border
Georgian Offset
Sash Horns
All of our timber sash windows can be supplied with or without sash horns. The sash horns are manufactured as part of the window frame to give an authentic look and feel to the window, unlike clip on sash horns as seen on some modern sash windows.
Sash Horn 1
Sash Horn 2
Sash Horn 3
Sash Horn 4
Sash Horn 5
Sash Horn 6
Window bead profiles
All of our timber sash windows can be supplied in a range of glazing bead profiles, within our standard range we have 3 profiles as shown below. The different profile thicknesses are designed to replicate different periods in time, more often than not the earlier the window the thinner the glazing bars will be.
Standard Sash Ovolo R8 profile
Profile 1
Standard Sash Ovolo R10 Profile
Profile 2
Standard Sash Lamb Profile
Profile 3
window furniture
We have a range of standard furniture available in our timber sash windows all available in various finishes. Looking for something different? We also offer a range of bespoke options custom made to suit your requirements.
Sash window furniture can often be dictated by the style of property, we understand the need to replicate the original windows within your home and can design your new hardware to match.
Pole Rings & Hooks
Polished chrome
Satin chrome
Polished brass
White
Polished chrome
Satin Chrome
Polished Brass
White
Fitch Fastener
Polished Chrome
Locking
Satin Chrome
Locking
Polished Brass
Locking
Polished Chrome
Non-Locking
Satin Chrome
Non-Locking
Polished Brass
Non-Locking
Modern Sash Lock
Polished Chrome
Locking
Satin Chrome
Locking
Polished Brass
Locking
White
Locking
Polished Chrome
Non-Locking
Satin Chrome
Non-Locking
Polished Brass
Non-Locking
White
Non-Locking
Limit Stops
Polished Chrome
Angel lock
Satin Chrome
Angel lock
Polished brass
Angel lock
White
Angel lock
Push Vent - Limit Stops
5 Inch Knocker
Fox Head Knocker
Lion head Rope Knocker
4 Inch Ring Knocker
Timber Sash Window Architrave
Many Georgian, Victorian and Edwardian home are finished internally with beautifully decorative woodwork which adds to the beauty of the sliding sash windows.
Often in need of replacement we supply a range of different options that can be fitted to enhance your new windows.
Ogee
Torus
Pencil Round
Regency
Victorian
Classic
Finishes
Although our timber doors and windows are manufactured using traditional methods, modern paint and finishes have come along way helping to ensure that your new door will be extremely hard wearing. We have a 4 stage Teknos finishing process as well as a the option to choose from Farow & Ball top coats.
Materials
Cost-effective
Pine
Preferably selected raw material for production of windows. Pine has a bright fresh colour, durability, excellent resistance to weather conditions and excellent thermal and acoustic insulation. Accessible, easy to handle and cost-effective. It is recommended for customers who value traditional solutions and economical use.
Durable and resistant.
Oak
The best building material out of native broad leaved trees, better than pine or even larch. Oak wood is hard, very durable and resistant to abrasion. It is characterised by high durability and resistance to changing moisture conditions. It has been widely appreciated all around the world for centuries.
Extremely resistance
Meranti
This exotic species of hardwood timber from Indonesia has extremely high resistance to weather conditions. The windows made of this material are not only durable but also very warm and quiet. Meranti wood density strongly depends on the species and can range from 300 kg/m3 to 1050 kg/m3 . It is recommend for places exposed to moisture. In windows and doors production most commonly used meranti is the one with a density above 450 kg / m3 , which ensures consistent quality of the final product.
Teknos

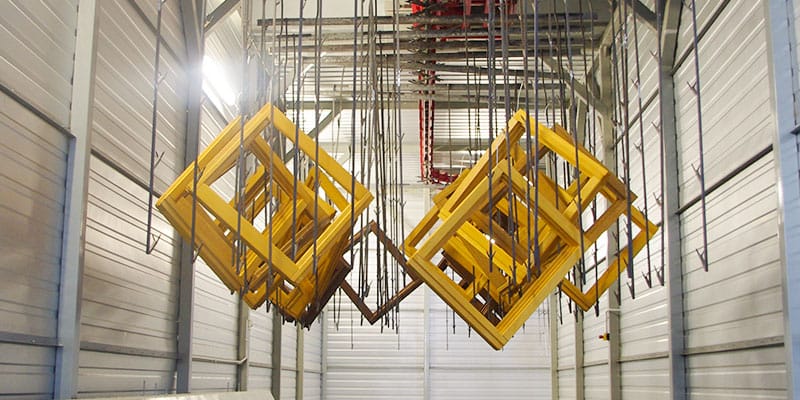

Our timber windows are coated with a 4 stage paint process from Teknos involving a wood preservative, primer, intermediate coat and topcoat. Tecknos coatings are formulated to keep your products looking attractive year after year, resisting the elements, maintaining appearance and value.
Each layer in the Teknos Aqua system has been carefully formulated both for its specific purpose and to work in synergy with the other products in the system to achieve maximum performance, including:
- Vacuum impregnation, wood preservative and combi primers product to preserve and prime the wood.
- Primers to fill the wood's pores and provide an anchor for intermediate or topcoats.
- Specialist primers and intermediate coats to block and inhibit tannin staining.
- End grain and construction joint fillers to protect the most vulnerable areas of exposed joinery.
- Intermediate products to fill the pores of coarser wood species, providing a more uniform surface for top coating.
- Flexible, micro porous topcoats for an attractive, durable yet flexible surface.
Stained
Our different timber materials can all be stained using a range of colours to enhance and protect the wood and achieve a look that fits your property.
Painted
We have a range of standard and custom RAL colours that can be applied to your new timber windows to achieve your desired finish.
Farrow & Ball
All of our Timber Entrance Doors are made to order and finished by hand. This enables us to apply custom touches to each and every window, if you would like a custom colour such as a Farrow & Ball paint to be applied to your new windows we able to provide this.
