Modern Styling
Aura & Auraplus
If energy efficiency and exceptional architectural elegance are on your must-have list, Aura and Auraplus may be the windows and doors for you.
Maximising natural daylight, their sleek aesthetic and minimalist design coupled with superb optical quality are ideal for extensive feature glazing areas. A perfect fit for the modern, bright living environment.
Cutting edge technology
AURA & AURAPLUS
If energy efficiency and exceptional architectural elegance are on your must-have list, Aura and Auraplus may be the windows and doors for you.
Maximising natural daylight, their sleek aesthetic and minimalist design coupled with superb optical quality are ideal for extensive feature glazing areas. A perfect fit for the modern, bright living environment.
Due to their high performance triple glazing, achieving the Passive House standard is within easy reach. Both Aura and Aura plus can reduce both your CO2 emissions and the energy bills of your home dramatically, a great investment for the future.
Offering the warmth and beauty of natural wood, the solid timber construction of the Aura range is the perfect choice for those seeking a timber window with all the benefits of modern security, energy efficiency and flexibility. For those preferring a composite construction, the Auraplus alu-clad features all the benefits of a timber windows internally, with the enhanced durability of an aluminium window externally. For those seeking a zero maintenance window that stands up to the harshest of weather conditions, the extra protection of aluminium cladding is the ideal option.
With a wide choice of different styles, glazing options and colours available in both the Aura and Auraplus ranges, you can create a customised window to complement your project perfectly.
Aura
– Timber frame
– 60-year life expectancy
– Over 200 colours available, with no extra charge for dual colour*
*When choosing from our standard colour range
The AURA window is a solid timber window manufactured from both timber internally and externally achieving excellent thermal and acoustic properties. Available in both double and triple glazing.
Auraplus
– Aluminium-clad timber frame
– Low-maintenance
– 83-year life expectancy
– Over 200 colours available, with no extra charge for dual colour*
*When choosing from our standard colour range
The AURAPLUS is a solid timber window with an external aluminium capping offering excellent durability to the outside giving an increased life expectancy.
Product Details
Designed to complement traditional British architecture, look no further than FORMA and FORMAPLUS. Beautifully styled, these designs bring the classic into the current day to create a finished look that’s simply transformational. It’s sheer sophistication, reimagined.

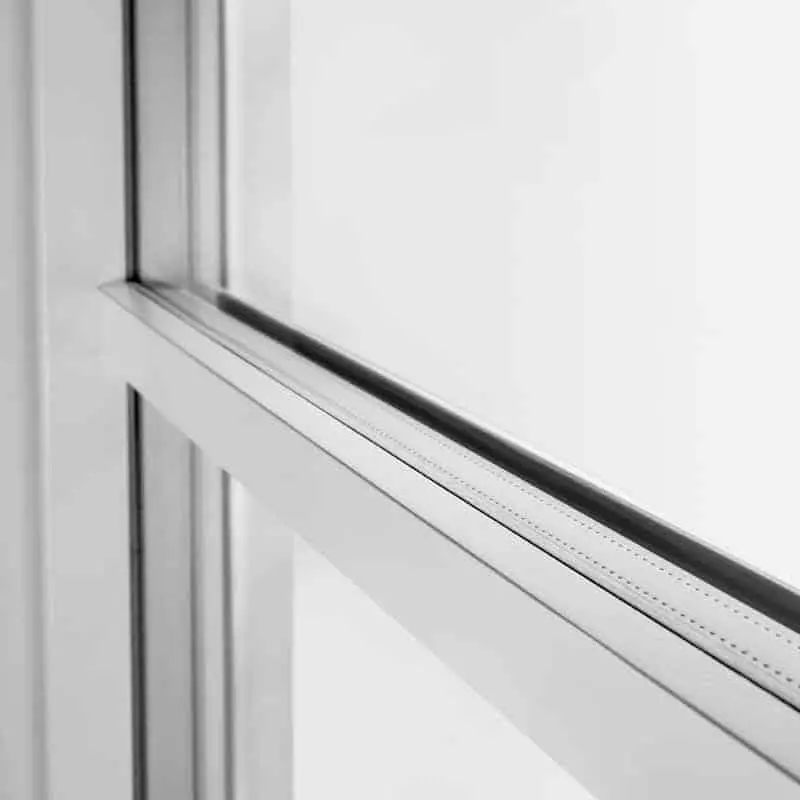

Both options work to bring a softer line to your windows, helping your project to blend more seamlessly into its surroundings. Available with or without glazing bars which particularly suits this style of windows.
Opening Functions
Rationel windows are available in a wide range of configurable options ensuring there is a solution for every requirement. With a wide range of opening types, the you have the option to choose a single opening type or combine multiple to create your perfect window.
As with the majority of our products child restrictors can be added for increased safety as well as high security locking. Some open types support 180 rotation so that you can easily clean your windows from inside your home.
Fixed Light
- Min. width: 250mm
- Min. height: 250mm
- Max. width: 2998mm
- Max. height: 2998mm
Top Guided
- Min. width: 358mm
- Min. height: 380mm
- Max. width: 1798mm
- Max. height: 1598mm
Side Hung
- Min. width: 358mm
- Min. height: 358mm
- Max. width: 948mm
- Max. height: 1798mm
Top Swing
- Min. width: 558mm
- Min. height: 548mm
- Max. width: 1598mm
- Max. height: 1598mm
Side Guided
- Min. width: 450mm
- Min. height: 438mm
- Max. width: 998mm
- Max. height: 1798mm
Side Swing
- Min. width: 478mm
- Min. height: 530mm
- Max. width: 998mm
- Max. height: 1798mm
Entrance Door
- Min. width: 658mm
- Min. height: 1708mm
- Max. width: 1198mm
- Max. height: 2498mm
Patio Doors
- Min. width: 658mm
- Min. height: 1708mm
- Max. width: 2328mm
- Max. height: 2498mm
Panelled Door
- Min. width: 648mm
- Min. height: 1708mm
- Max. width: 1198mm
- Max. height: 2398mm
Window Door
- Min. width: 508mm
- Min. height: 1708mm
- Max. width: 2337mm
- Max. height: 2398mm
Colours
Customise the look of your new window with the wide range of standard and bespoke Rationel colours.
All Rationel products are available in a wide range of customisable options with the colour palette being no exception. Available in a wide range of standard, Custom RAL and granite colour options there is sure to be an option for every individual taste and project requirement.
Take a look below to look through some of the specially selected colour options that will work perfectly with contemporary and traditional homes alike.
RAL 9010
Pure white
RAL 9001
Creme
RAL 9003
Signal white
RAL 9002
Grey white
RAL 7035
Light grey
RAL 7044
Silk grey
RAL 7038
Agate grey
RAL 9007
Grey aluminium
RAL 7038
Stone grey
RAL 7038
Dusty grey
RAL 7038
Silver grey
RAL 7038
Slate grey
RAL 7012
Bastalt grey
RAL 7016
Anthracite grey
RAL 7013
Brown grey
RAL 1035
Pearl beige
RAL 7032
Pebble grey
RAL 7006
Beige grey
RAL 7022
Umbra grey
RAL 6003
Olive green
RAL 8017
Chocolate
RAL 8019
Grey brown
RAL 7024
Graphite grey
RAL 9004
Signal black
RAL 7021
Black grey
RAL 8022
Black brown
RAL 9005
Jet black
Granite Colours
Auraplus are also available in a range of beautiful textured granite colours a real unique feature on these spectacular windows. If you are interested to know more about these windows please make a visit to our showroom where you can look and feel these sample colours in person.
For additional cost we can apply any RAL colours to Rationel windows.
G01 White
(SAA10F)
G10 Light grey
(S2150)
G20 Medium grey
(S2400)
G30 Warm grey
(S2900)
G60 Dark grey
(S2100)
G80 Black
(S900)
Glazing Options
All Rationel windows are fitted with highly energy efficient glazing, with a warm edge spacer fitted as standard to help reduce cold bridging. Environmentally friendly argon gas is filled between the glass panes to reduce heat loss and a think transparent metal film is applied to the internal pane to help prevent heat from escaping out of your room.
Available in a wide range of options including obscured, acoustic coloured, enhanced security and much more, find out more below.

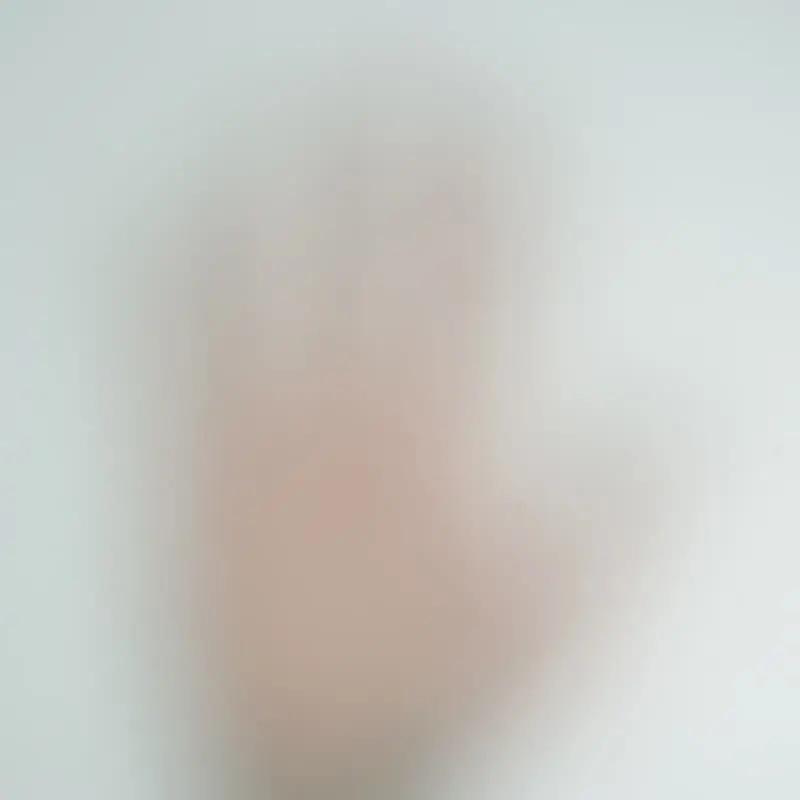

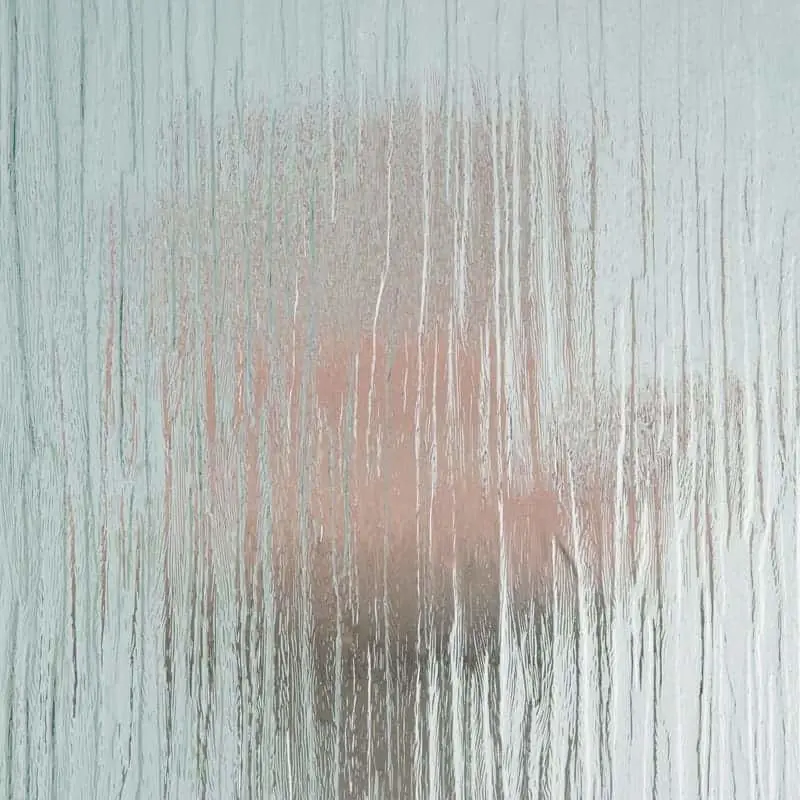

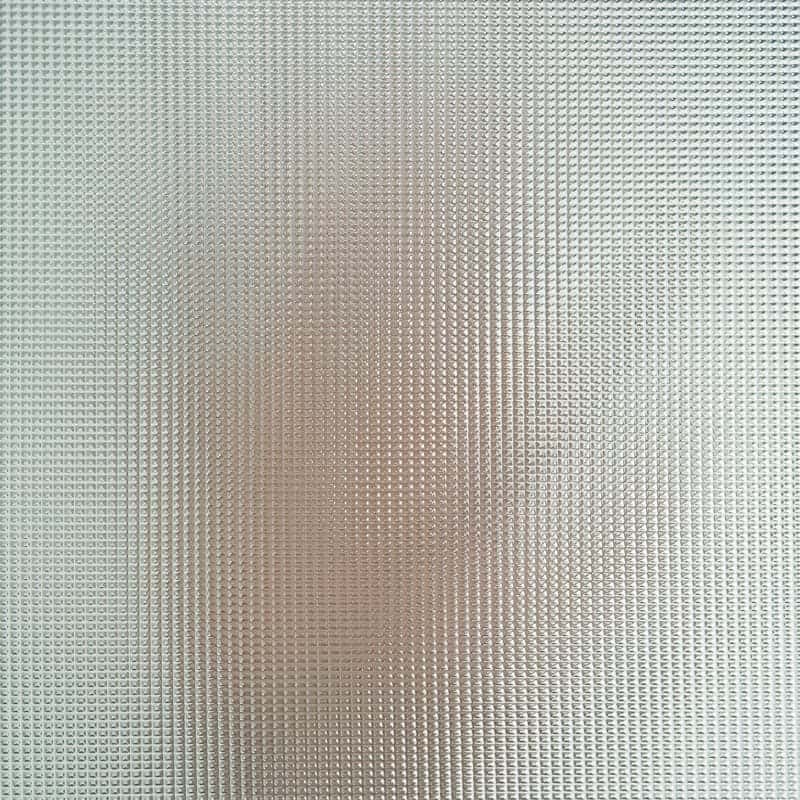

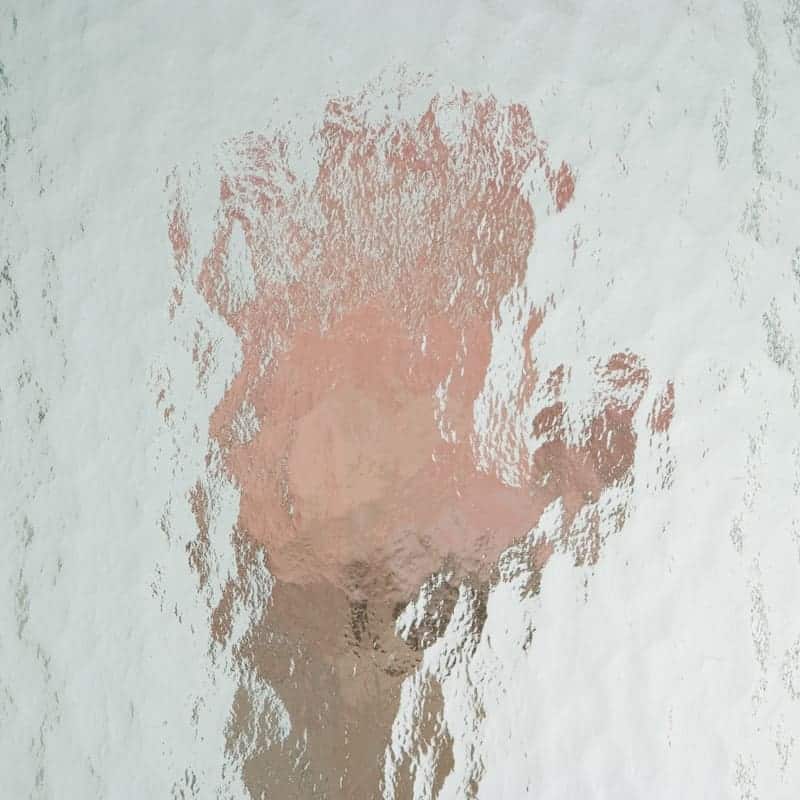

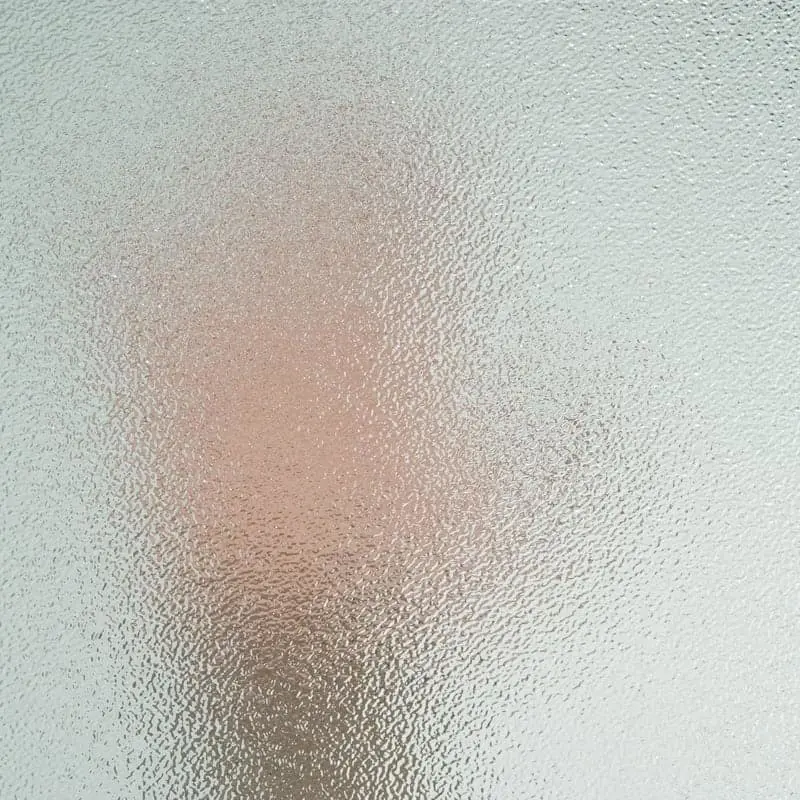

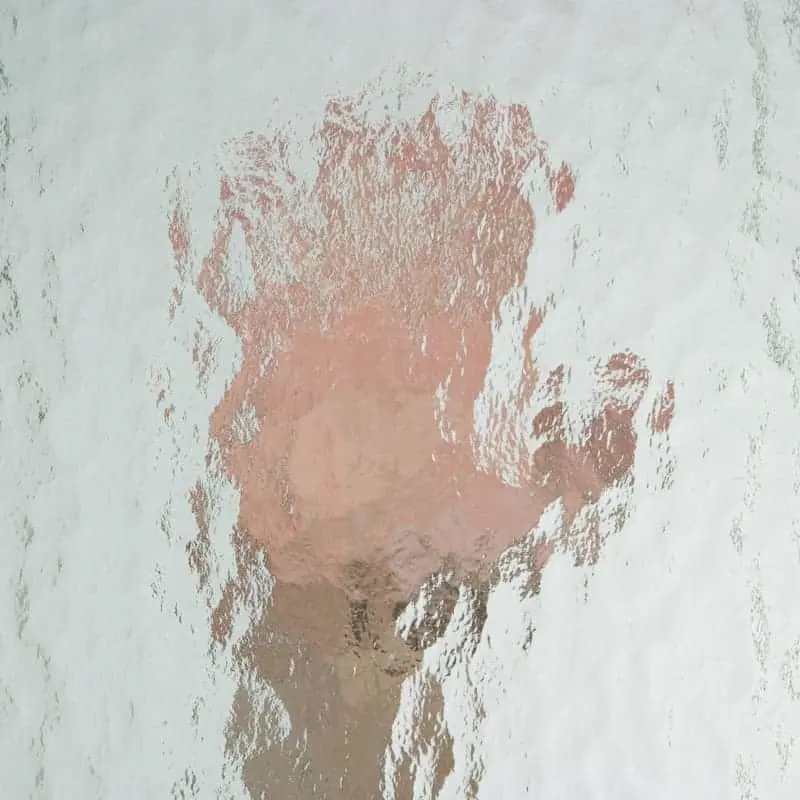

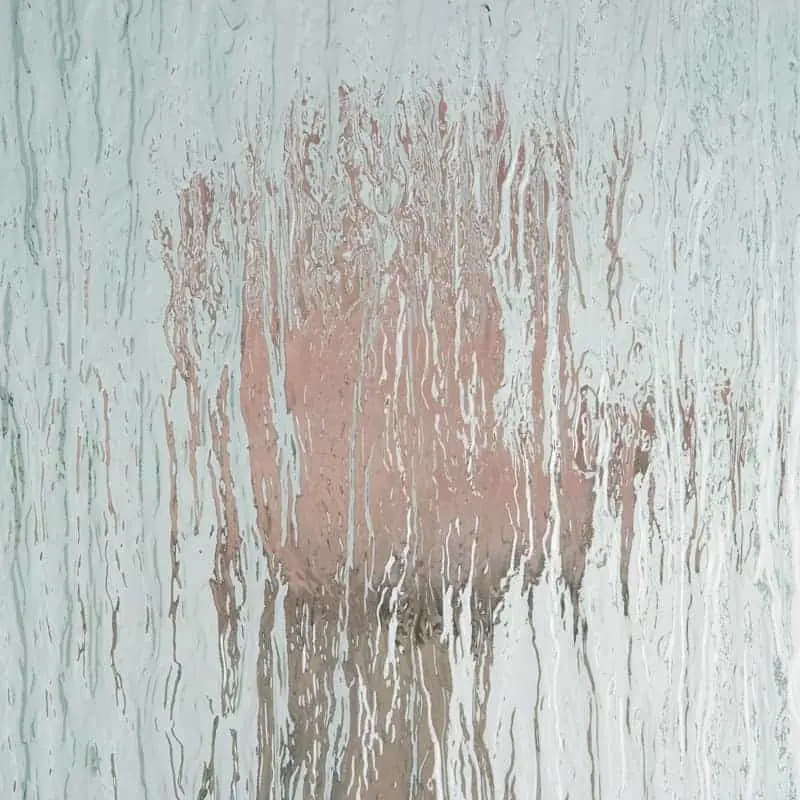

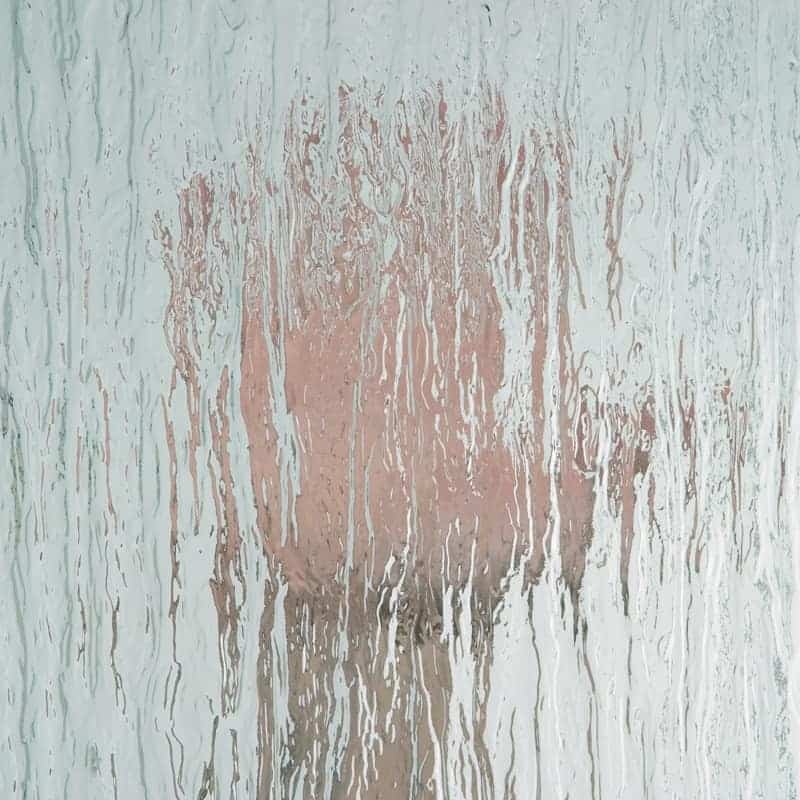

OBSCURE
Rationel OBSCURE is designed to restrict the view into the private areas of your home, perfect for bathrooms. The obscure glazing is placed on the inside of all glazing panels ensuring they are easy to clean.

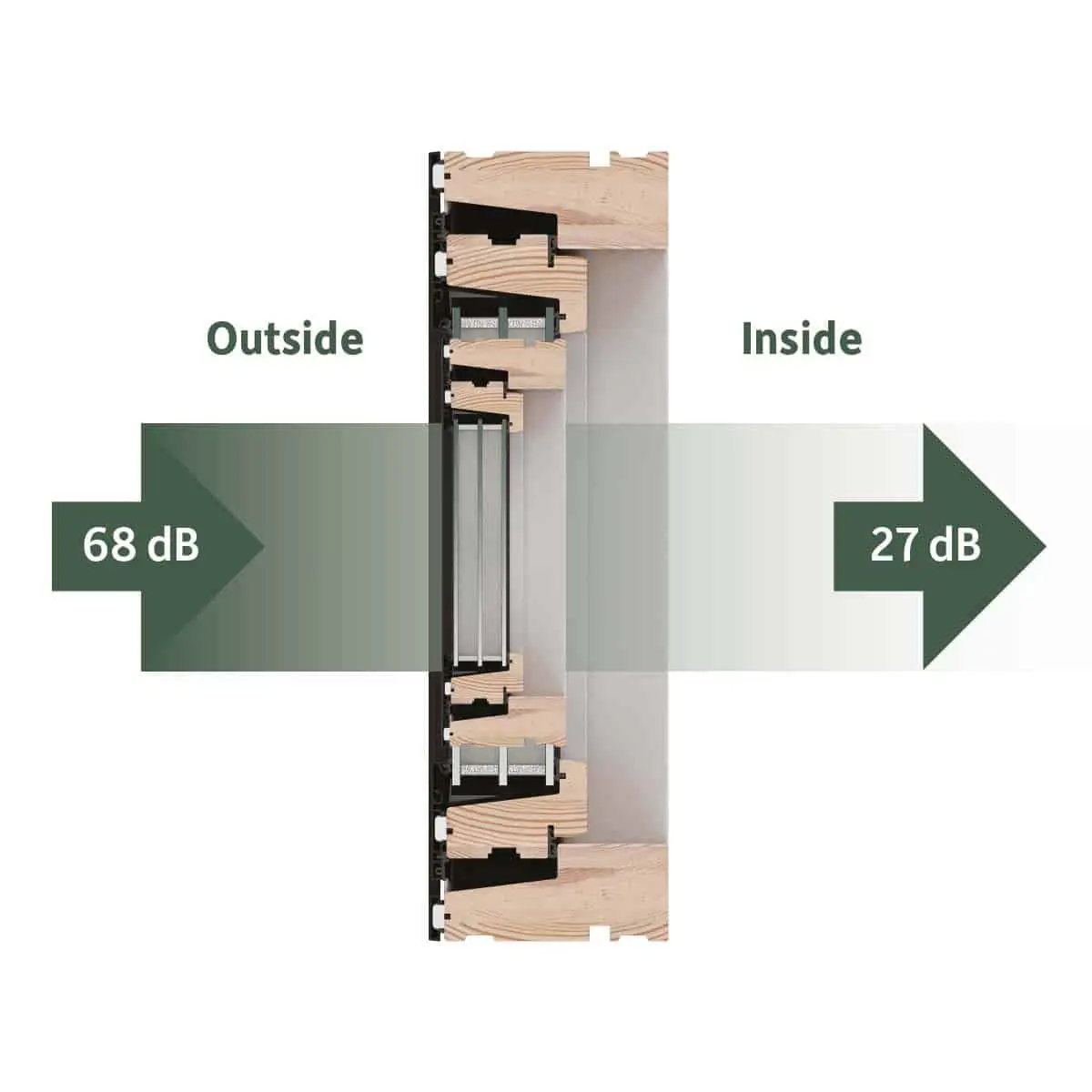

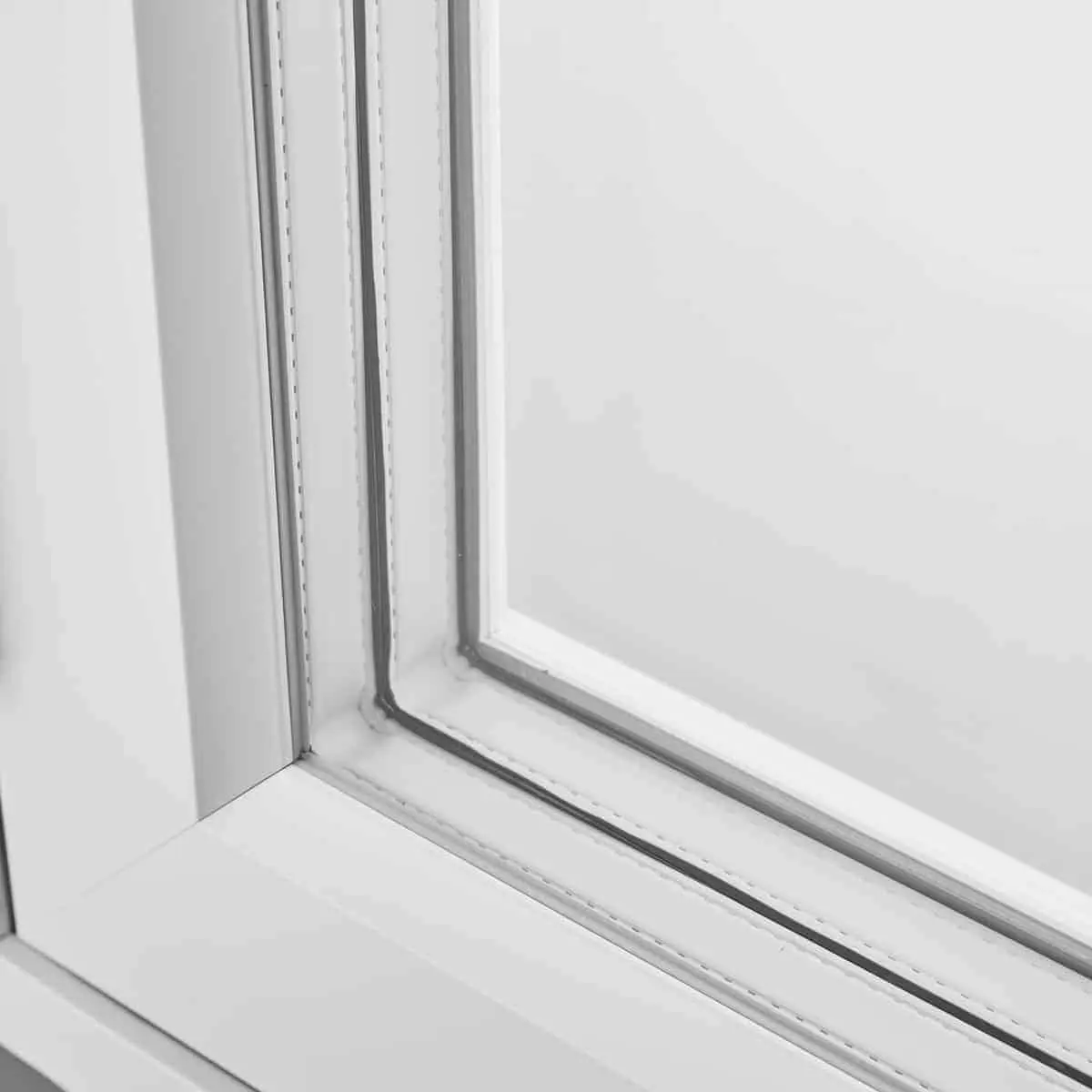

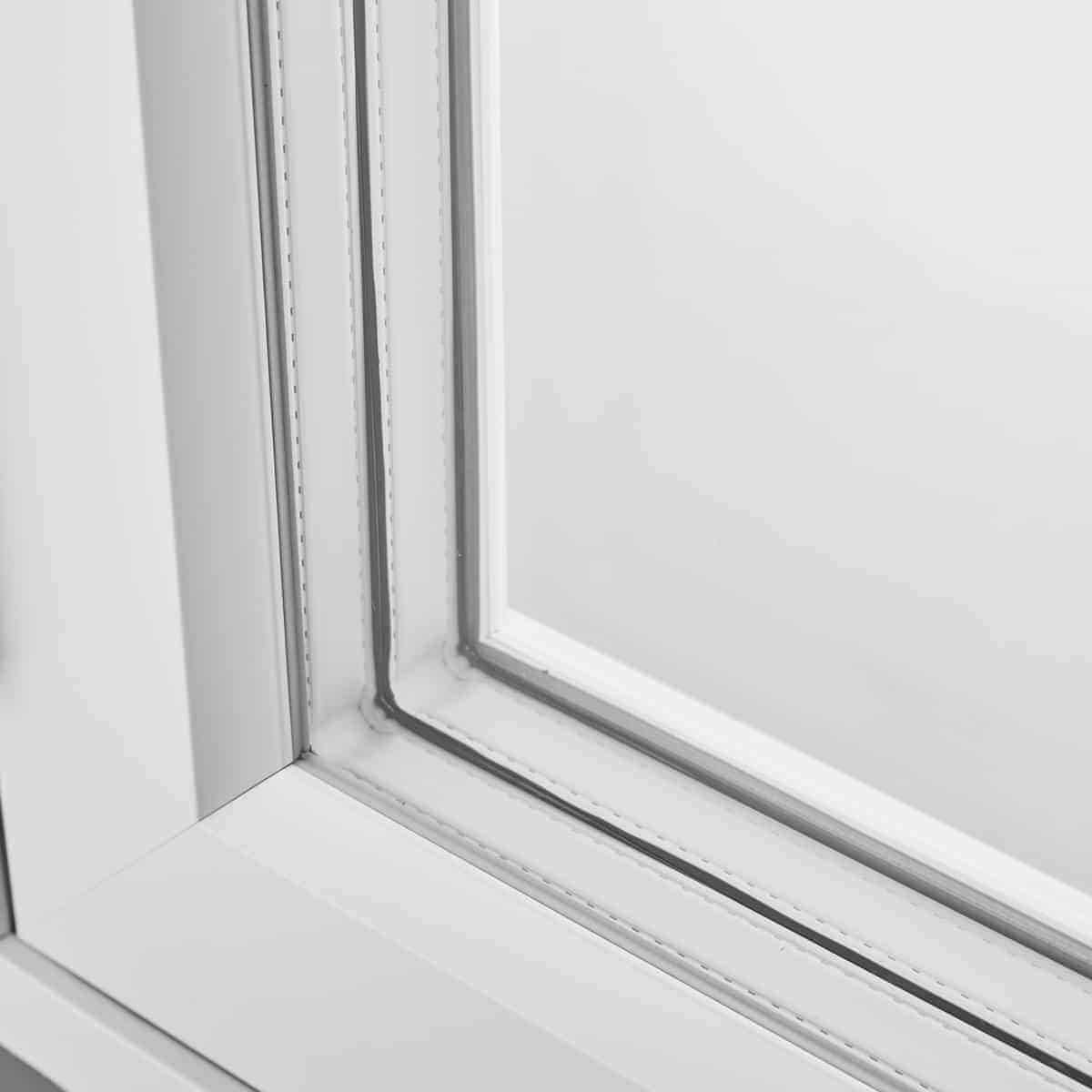

Acoustic
External noise can play a large factor on the quality of your daily life, Rationel sound control glass can help to keep the noise out by reducing sound transfer from outside by over 10db compared to a standard double glazed window.

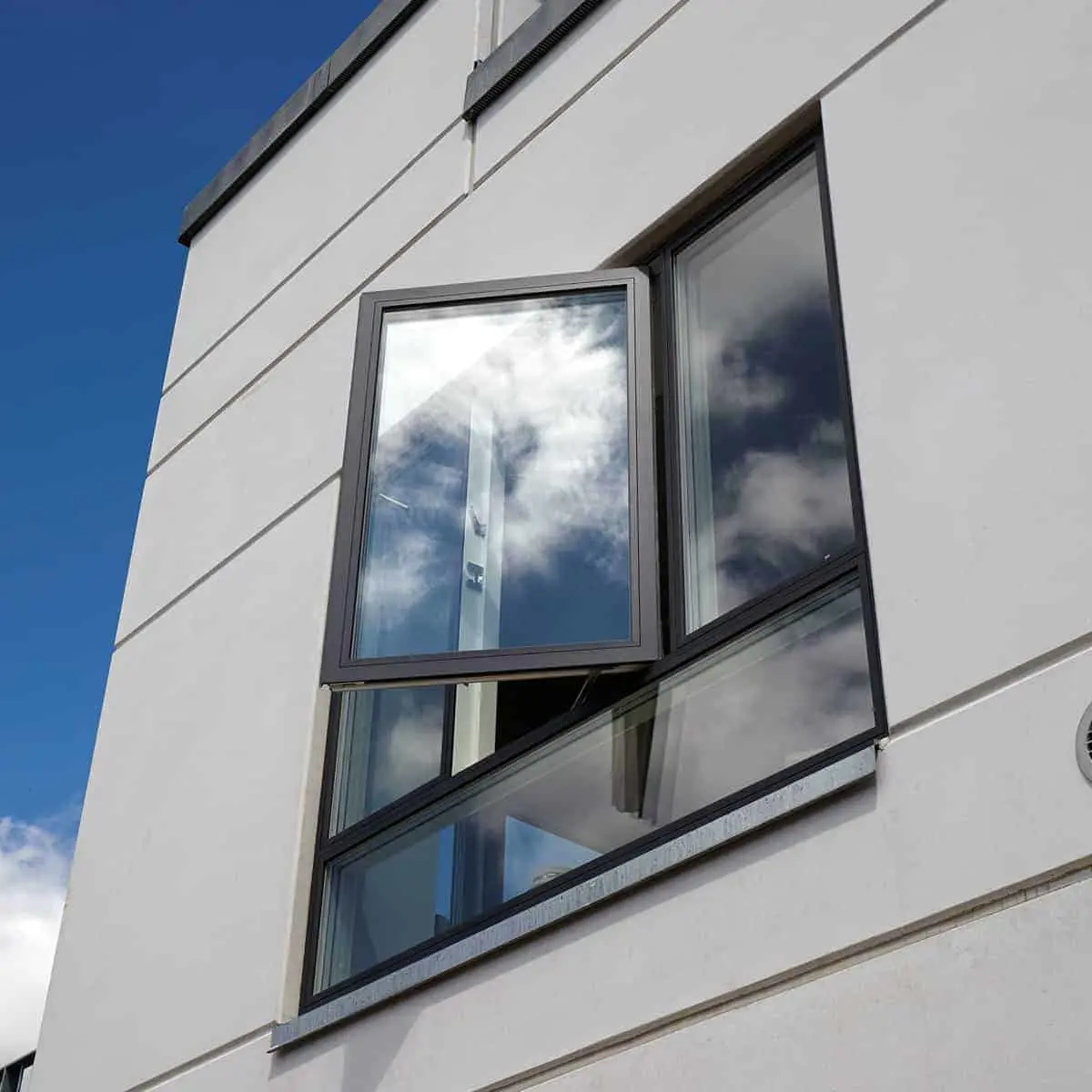

Solar
Rationel SOLAR glass helps prevent overheating as a result of sunlight falling directly onto a window. It’s often installed in office buildings which feature large glazed facades, but is also ideal for any south or west-facing façade in a family home. Rationel SOLAR Green and Grey feature tinted glass which reduces the amount of light and heat coming into a building.

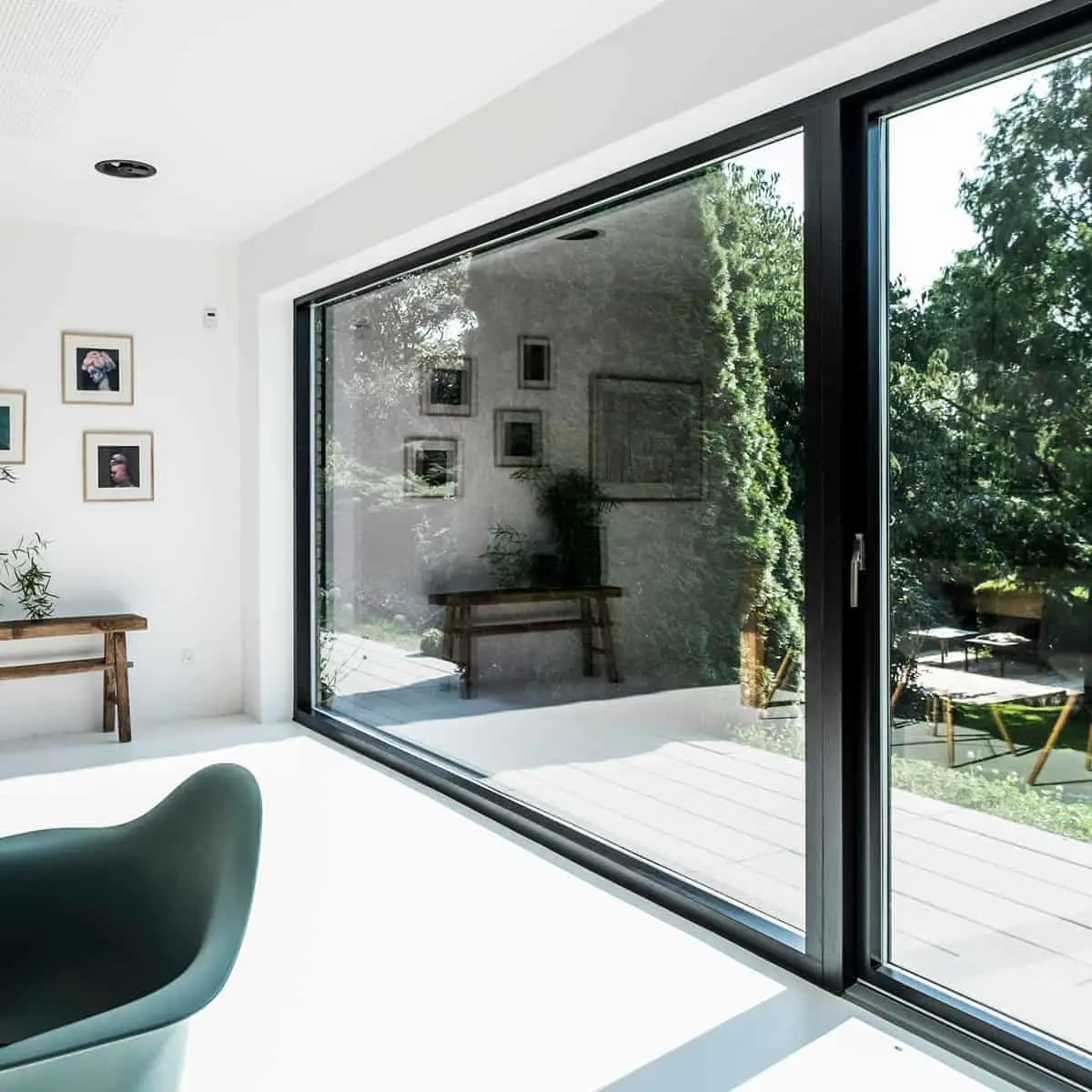

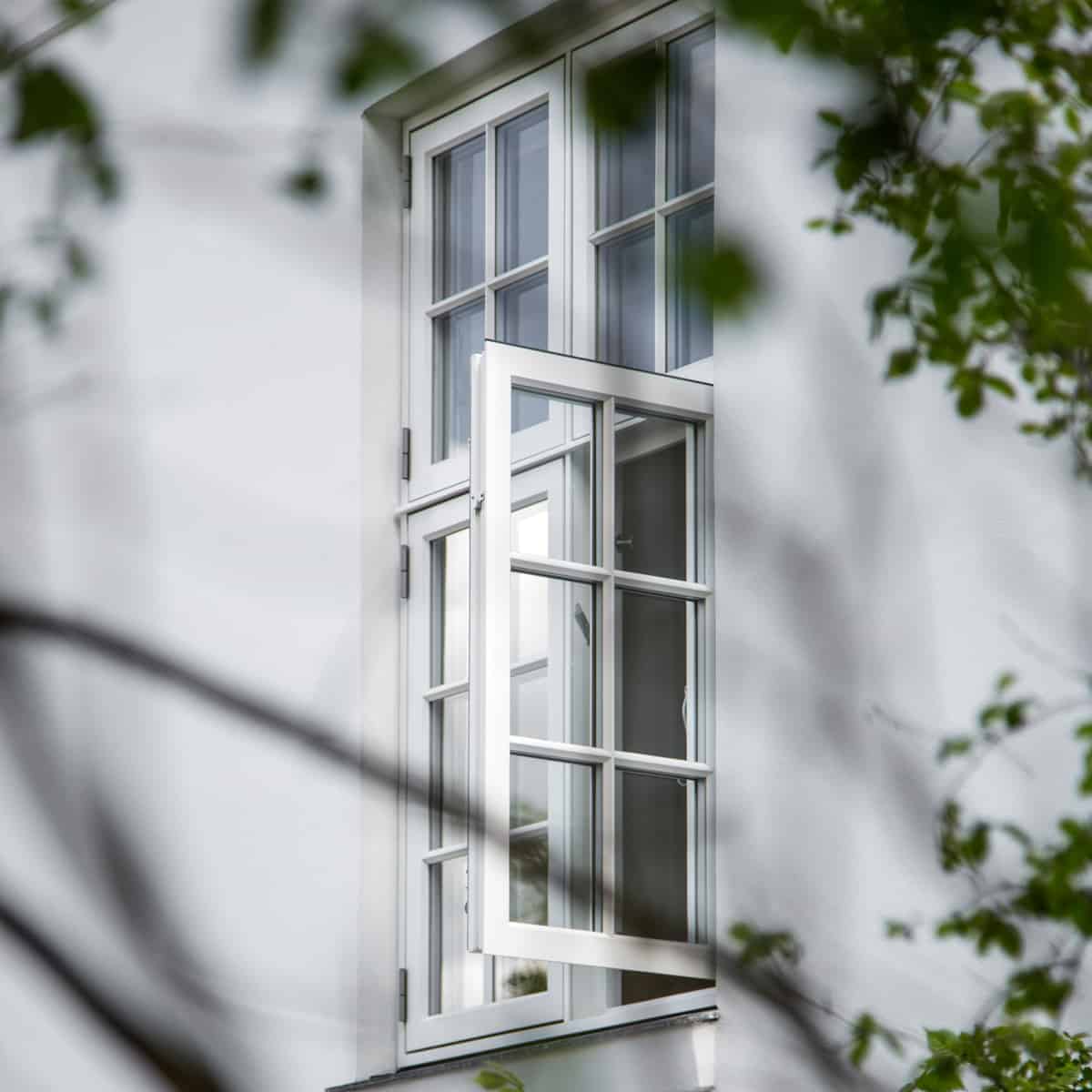

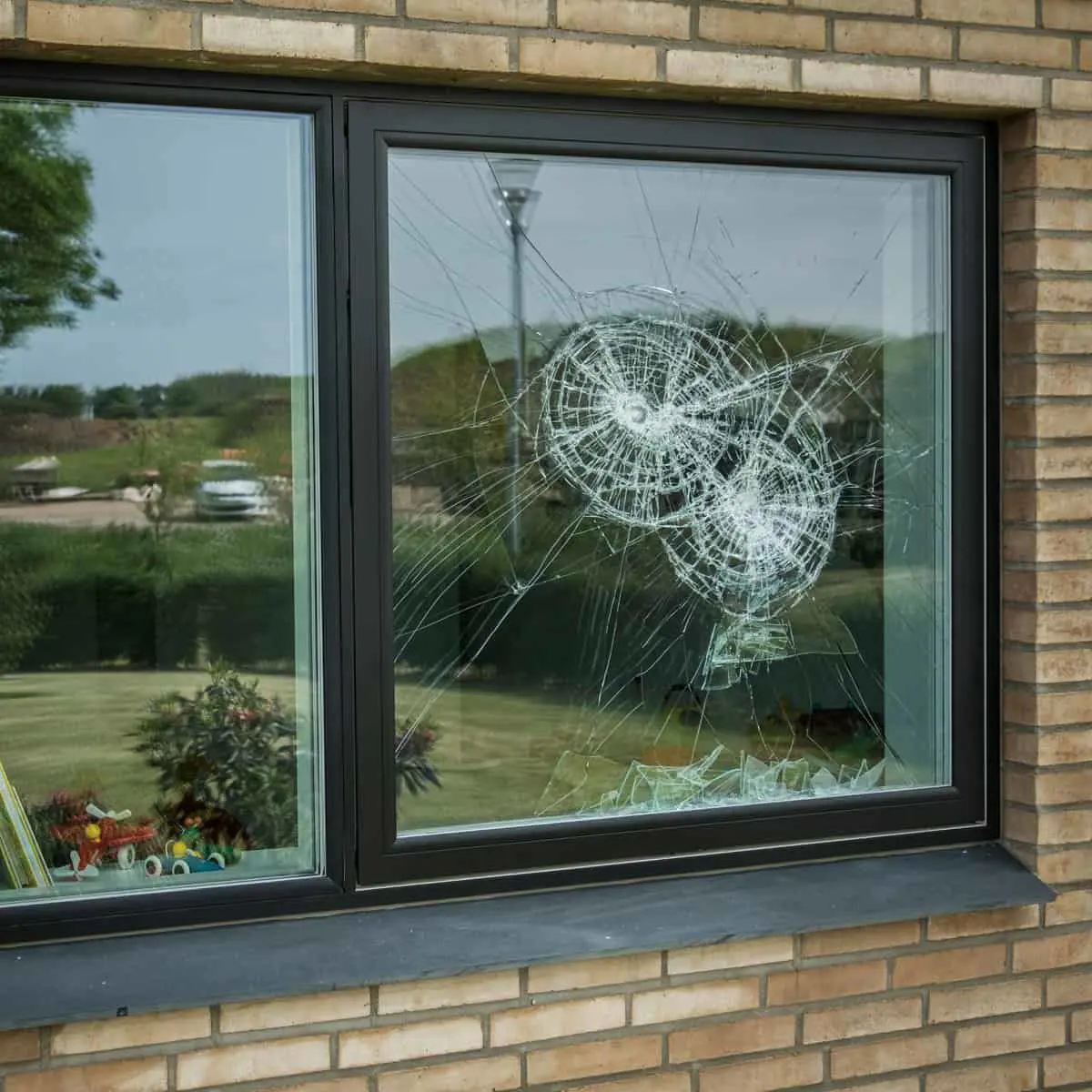

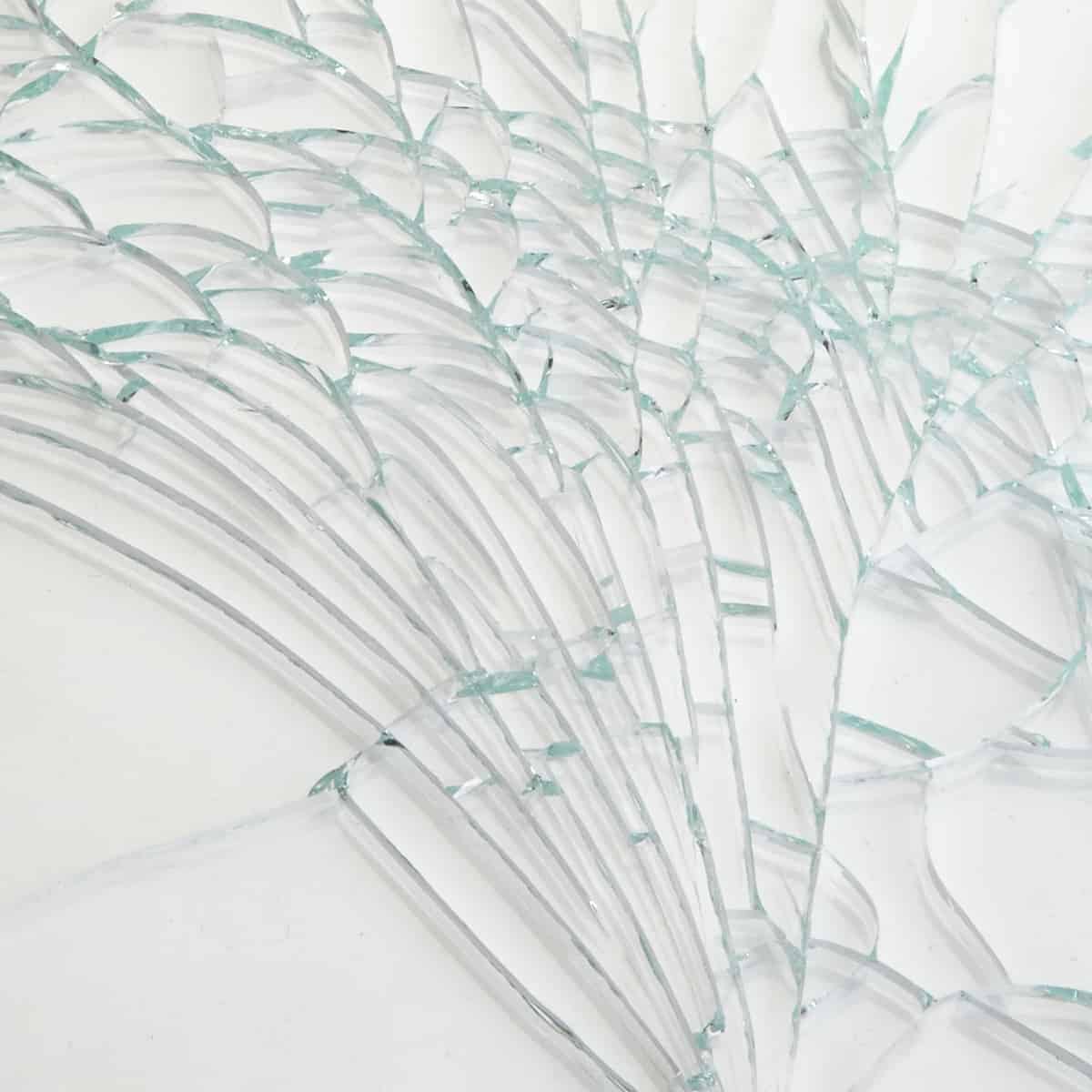

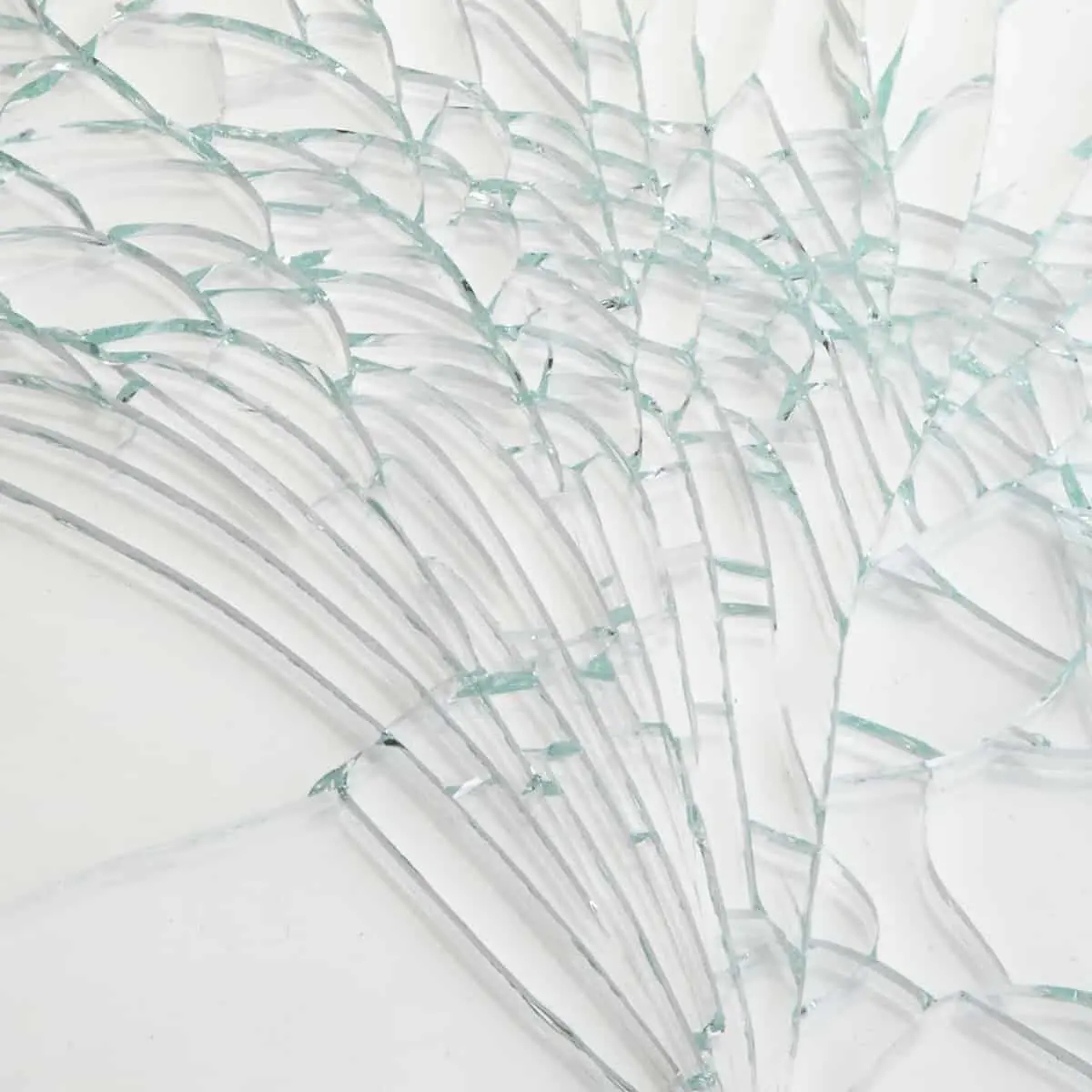

SECURE
Most burglars enter the home through an easily accessible window or patio door, which underlines the importance of window security. Rationel SECURE laminated safety glass is designed to resist forced entry and can therefore deter a thief from attempting to break into your home.

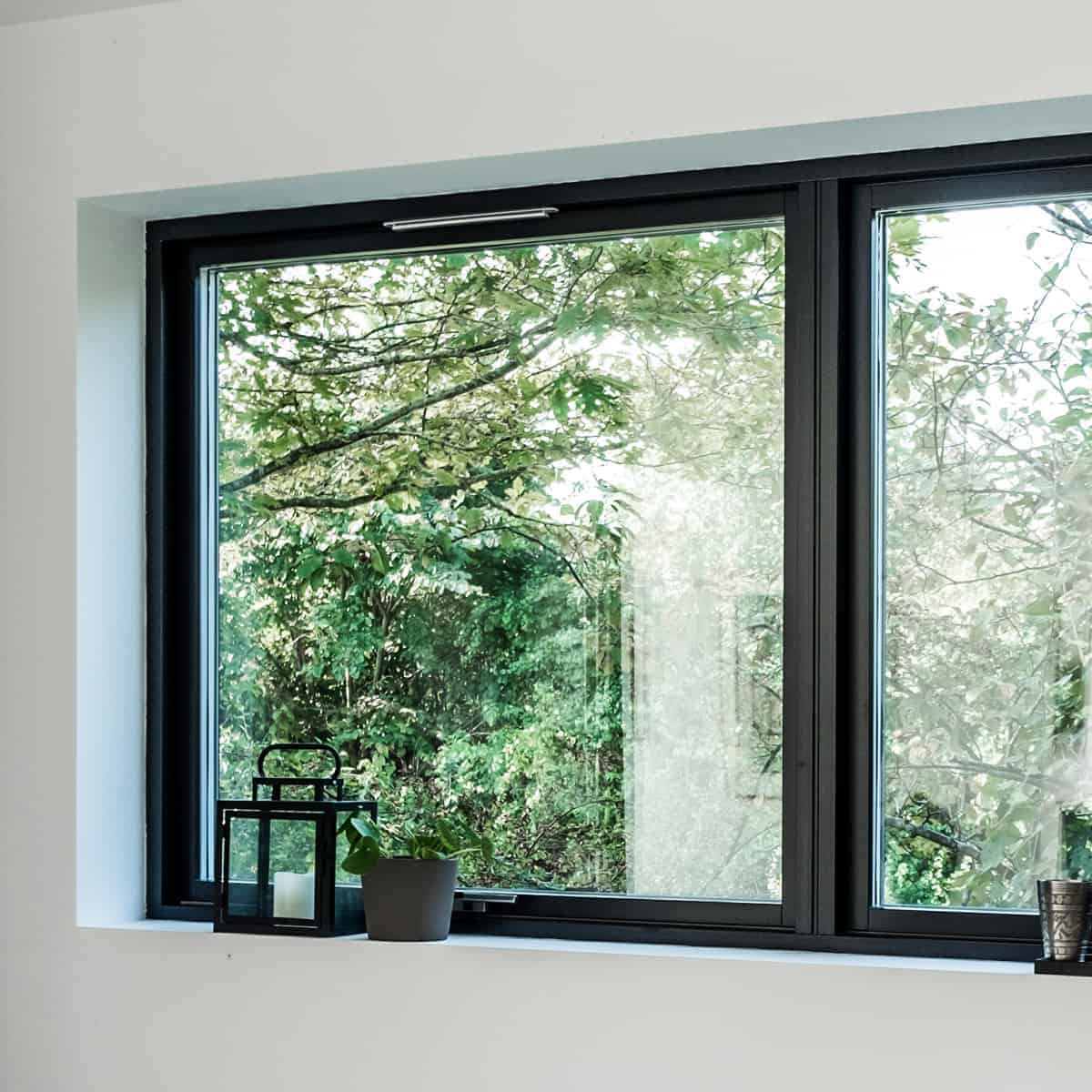

Sun protection
The level of sun protection provided by a window is determined by the amount of sunlight and the amount of the sun’s heat that are allowed to pass through the glazing. Sunlight is known as the Light Transmittance (LT-value) and the heat is known as the Solar Heat Gain (g-value). Other factors that may be considered are Energy Absorption (EA) and Energy Reflection (ER), these are the percentages of solar radiation absorbed by the glazing and the solar radiation reflected by the glazing.
- Sun SKN176:Approximately 64% transmittance*, 35% solar gain**
- Sun SKN165:Approximately 55% transmittance*, 31% solar gain**
- Sun SKN154:Approximately 47% transmittance*, 26% solar gain**
*= LT-value **= g-value
In comparison, a standard non-solar glazing would offer in the region of 74% light transmittance and 53% solar gain.
NOTE: All examples for triple glazed window elements.

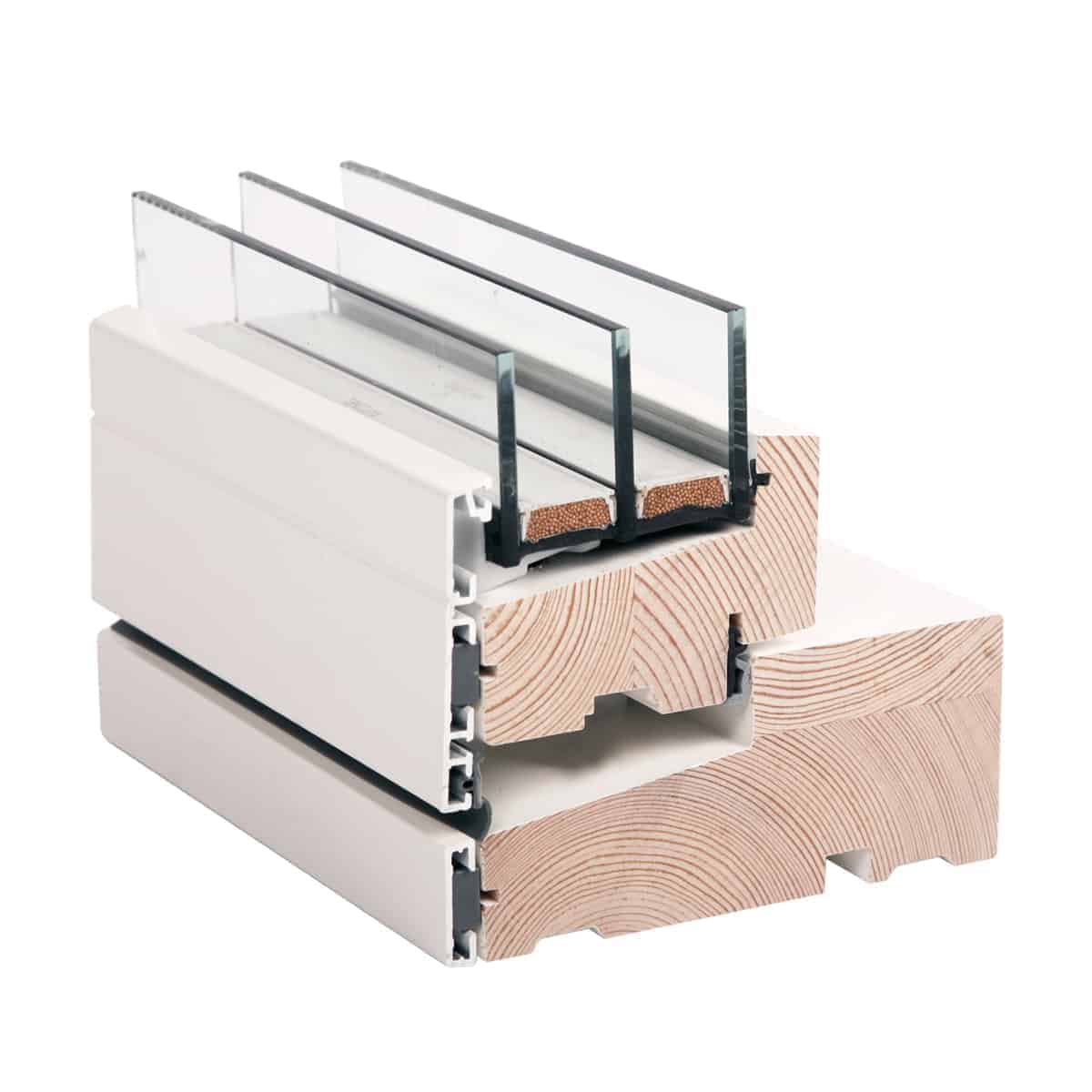

Triple glazed
– Best performance: 0.79 W/m2 K U-value
– 42 dB Rw sound reduction
Double glazed
– Best performance: 1.29 W/m2 K U-value
– 40 dB Rw sound reduction
