Solarlux

34 mm profile

CERO

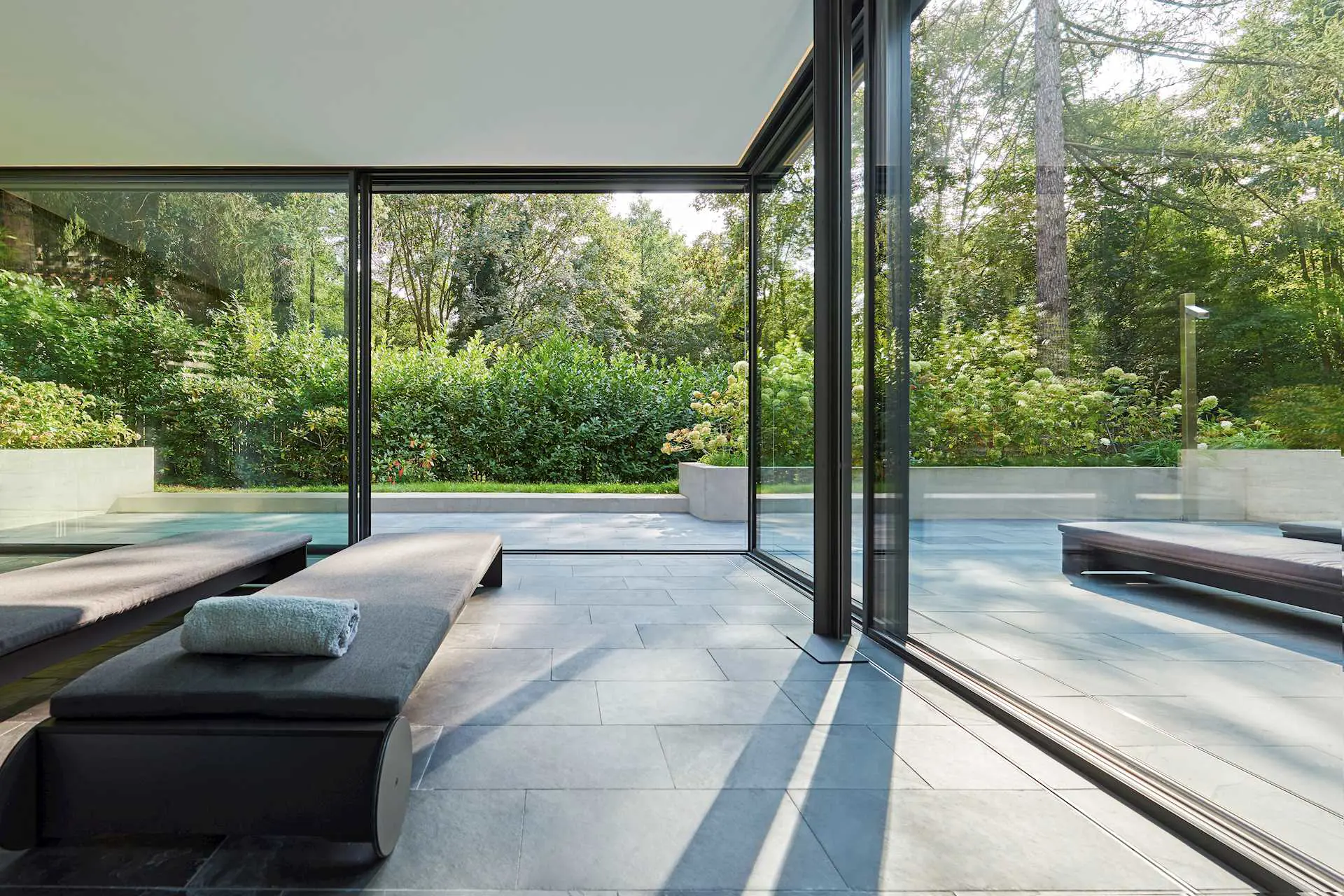

With ultra-slim 34 mm profile sight lines, the individual sliding elements can reach up to 6 metres in height and make up a total area of 15 m² (cero III). All in all, the system is made of 98% glass providing a huge 98% daylight transparency. Spaces are flooded with light providing a feeling of airiness and grandeur

cero II Key features

• A mere 34mm narrow profile width gives a symmetrical, minimalist design and maximum transparency.
• High-quality aluminium available in your choice of colour (RAL, DB powder coating and Eloxal), 30 RAL colours as standard.
• Extra large toughened glass panels up to 12 m2 provides maximum transparency through 98% glass.
• Intelligent drainage, tested and certified for wind load and air/driving rain permeability.
• Versatile ground plans inc. flush-fitted for accessible living, multi-track and various corner situations can be executed
• Easy glide stainless steel carriages/rails for long-term safe running properties
• Motorisation options inc. electro-mechanical locking/unlocking and integrated insect protection

In addition

Cero III Triple glazed option achieves Uw values of around 0.8W/m2k, suitable for passive homes depending on the size, glazing and configuration choices. Extremely large toughened glass panels up to 15 m2.

Cero IV Also triple glazed, it has all the great features of cero II and cero III with the additional innovation of a structural glazing effect that makes the forend almost completely invisible offering even greater transparency levels than ever before. The top and bottom sight lines on the panel profile are only 15 mm wide each and the vertical only 2 mm! In addition, the cero IV also has a frame that can be set flush into the ceiling, just like all other cero systems. This allows the frame and profiles to disappear from view almost completely so the generous glass area can take centre stage.

Colour Options

Our Solarlux sliding doors are available in a wide range of RAL colours, a selection of popular colours has been highlighted below.

PROFILE SYSTEM

• Thermally insulated aluminium profile system in all-glass look
• Running tracks and guide rails are built flush into the system.
• Thermal break made of fibreglass-reinforced polyamide
• Ventilation und concealed drainage of the lower glass rebate

SIGHT LINES

• Frame: 0 – 79 mm
• Panel: 34 mm
• Panel joint: 34 mm
• Frame building depth: 91 – 303 mm
• Panel building depth: 72 mm

SEALING SYSTEM

• High degree of impermeability thanks to the use of several sealing levels
• Dry glazing

GLAZING

• Glass thicknesses: 48 – 54 mm
• Self-cleaning glass can be used
• Can handle glass tolerances of up to 5 mm in width and height
• Security glass

VERSIONS

• The panels are bottom-running
• Optional sliding to left / right
• Forend reversed and offset
• Floor track flush and compliant with DIN 18040 “Accessible apartment”

FITTINGS

• Fittings concealed in the profiles
• Exchangeable running gear
• Sealed bearing stainless stell running gear
• Stainless steel running track for long-term safe running properties
• Cleaning of the running track through upstream moulded pieces in the panel
• Sturdy SL design handles made of stainless steel
• Panel locking with 24 mm stroke
• Closing monitor possible through magnet query

OPTIONS

• Multi-track systems available
• Different corner situations can be executed
• Electric panel drive available
• Broken glass alarm available
• Functional glass as sound insulation and protection against burglary and impact
• Connection to higher-order control and monitoring systems
• Use of an electromechanical blocking element
• Integrated insect protection

ENVIRONMENT

• Certified disposal in accordance with DIN EN ISO 14001:2005
• Sustainable manufacturing
• Internal production control
