Original  Aluminium sliding door banner

Original Aluminium sliding patio door

The Original aluminium sliding patio doors are ideal as a direct replacement for an old unit within your home due to their slim profile, removing the need to cut back plasterwork, reducing installation time. They are also a cost affective upgrade to the traditional sliding doors.

The strength of Aluminium the Original patio door enables them to span large openings and their slim frame construction offers large unobstructed views of your surroundings along with maximising the light entering your room.  They offer the ideal solution to create an indoor/outdoor flow within your home.

The Original sliding door range has been designed with security in mind featuring a multipoint locking system for enhanced security giving you peace of mind that your home is secure.

If you are looking to open up an existing doorway or replace a tradition unit with something more modern the Original sliding door could be perfect for you.  We have an Original sliding door on show in our Heswall showroom for you to come and try out.



  • 98mm frame.

  • Up to 2400mm in height.

  • Up to 6353mm wide.

  • 2, 3 and 4 pane options.

  • 50mm mullion (vertical profile)

  • Stainless steel track and wheels for easy maintenance free operation.

  • Multiple colour and finish options for both the frame and accessories.

  • A+ energy rating for excellent thermal efficiency, up to 28mm double glazing.

  • Standard colours include black, white and 7016 grey. Bespoke colours also available.

Sliding Door Handles

The Original sliding door is fitted with an aluminium D handle set on backplate for exterior use. The handles are available in a range of colours as shown below enabling you to make the perfect choice of handle to match the other windows and doors within your property.

Silver sliding patio door handle. Black sliding patio door handle. White sliding patio door handle. Gold sliding patio door handle. Metallic silver sliding patio door handle. Metallic gold sliding patio door handle.


Original door colour options

The Original sliding door is available in a range of standard colours and also an extended range of over 300 colours. Colours are available in matt and metabolic finished giving you total control of the look and finish of your new door. The Original sliding door is available in dual colour allowing you to select either the same colour on both sides of the door or two different colours one colour on the inside and a different colour on the outside of the door.

All doors are powder coated giving you an ultra low maintenance hard wearing door perfect for those with busy lifestyles. All that is required to keep your door looking like new is an occasional wipe down with warm soapy water.

Aluminium patio door colour options.

Door Configurations

The Original sliding door is available in 2, 3 and 4 panel formats as shown below.

Two pane sliding patio door.Three pane sliding patio door.

Four pane sliding patio door.

Technical Drawings

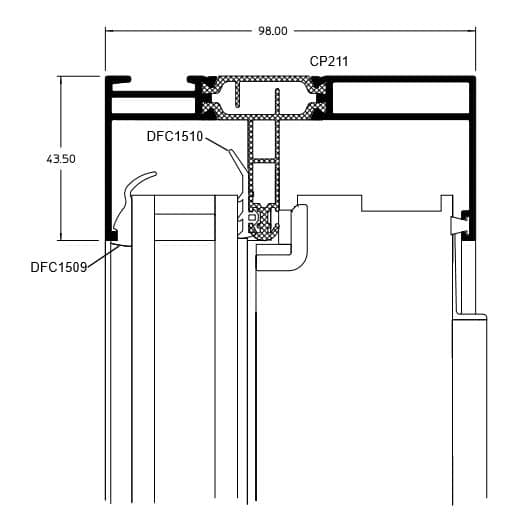

Fixed Head
Fixed Head technical drawing
Fixed Cill
Fixed Cill technical drawing

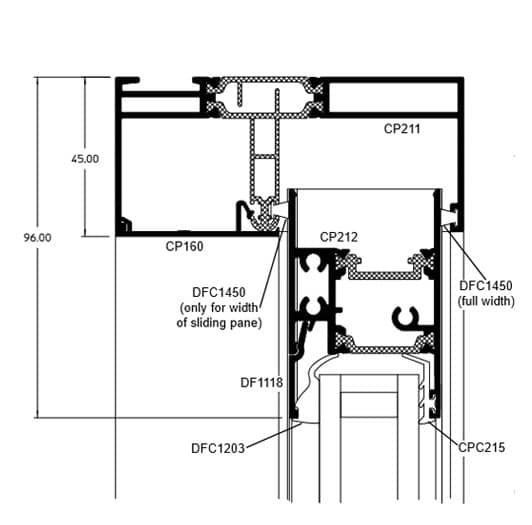

Sliding Head
Sliding Head technical drawing

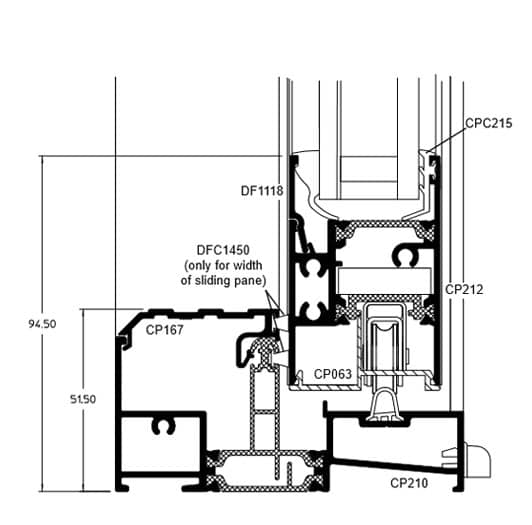

Sliding Cill
Sliding Cill technical drawing

View the full range of Original Aluminium sliding patio doors by downloading the brochure below
