AMS Aluminium Curtain Walling



AMS Aluminium Curtain Walling
Offering market leading weather performance combines with unique architectural design features, the AMS MU800 is the ideal solution for a drained curtain walling system. Suitable for both high and low rise applications, the system is complete with a 55m face width. With a large suite of profile dimensions available, other features include: thermal isolator, foil backed weather tape and pressure plate for a thermally broken façade, EPDM gaskets. Additionally, there is a variety of aluminium capped external finishing options.

Thermal Performance
In conjunction with the correct glass specification, AMS MU800 curtain walling is designed to offer the specifier excellent aluminium thermal uframe and overall target u-values (or equivalent energy ratings) on specified projects.

Finishes
Polyester Powder Coating in a large range of RAL colours
Aluminium profiles can be polyester powder coated with a woodgrain effect paint finish.
Aluminium profiles can be anodised to BS1615 or BS3987.

Insert Opening Vents & Doors
Details and specification information for these insert products can be found in the window
and door section of AMS’s technical literature.

Glazing
The system can accommodate 22mm, 24mm, 28 mm and 32mm double glazed insulating units.

Performance
Tested to BS 6375-Part 1.
Air Permeability - 600 Pa.
Water Tightness - 600 Pa.
Wind Resistance - 2400 Pa.
Tested to CWCT standards.
Sequence B Test.





Profile Applications


Curtain Walling
Curtain walling

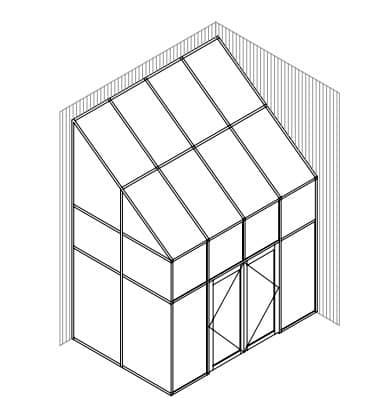

Sloped Glazing
Sloped Glazing

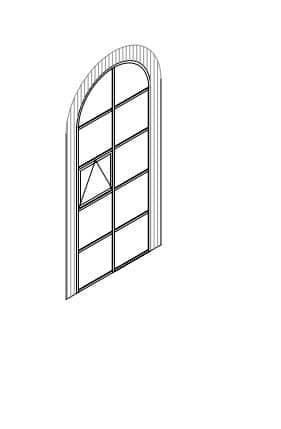

Arched Heads
Arched heads

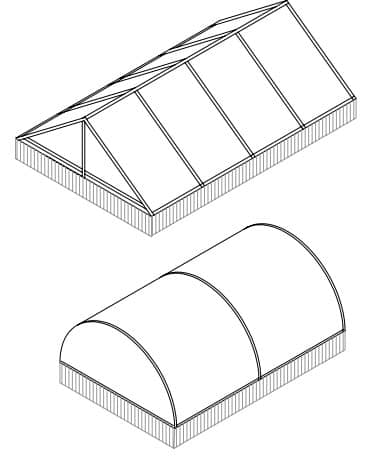

Rooflights
Rooflights

Mullion drained system


Profile detail of AMS curtain walling mullion drained system (Scale NTS).

Technical details (28mm glazing)


Head detail


Fixing detail


Cill detail






View the full specification of the AMS MU800 mullion drained curtain walling system by downloading the brochure below
